Differential Regulator Drives High-Precision Manual Linear Stage PT-SD74

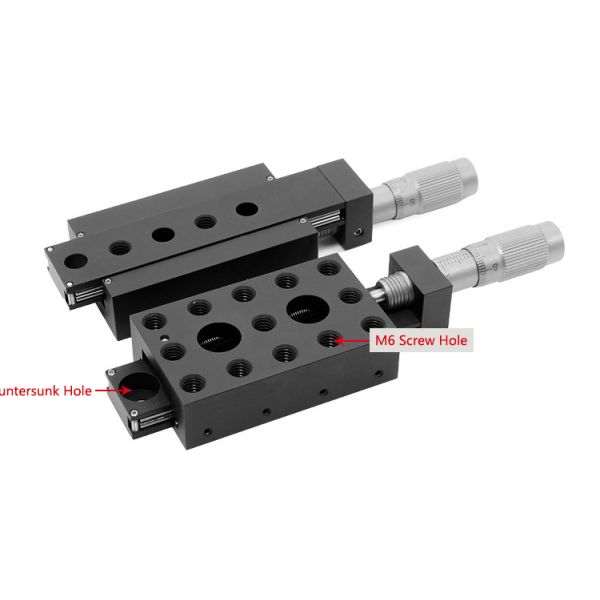

This manual linear stage is equipped with a differential regulator as the driver and uses hardened steel linear bearings for precise movement and extended service life. For the convenience of installing it on an optical flat plate, 15 M6 screw holes are set on the table surface of the displacement table, and 2 06.0mm countersunk holes are also set at the bottom.
Manual linear Stage Product characteristics
1. The stroke of the PT-SD74 linear stage is 8mm, with a coarse adjustment of 0.35mm per revolution and a fine adjustment of 2 degrees μm.
2. 15 M6 threaded mounting holes.
3.Modular design facilitates the combination of displacement tables into XY and XYZ configurations.
Manual linear Stage Product Parameters
| Model Number | PT-SD74 |
| Travel Range | 8mm |
| Driving Method | Differential Regulator |
| Indexing Accuracy | Roughly adjust one circle by 0.35mm, Fine tuning 2 μ m |

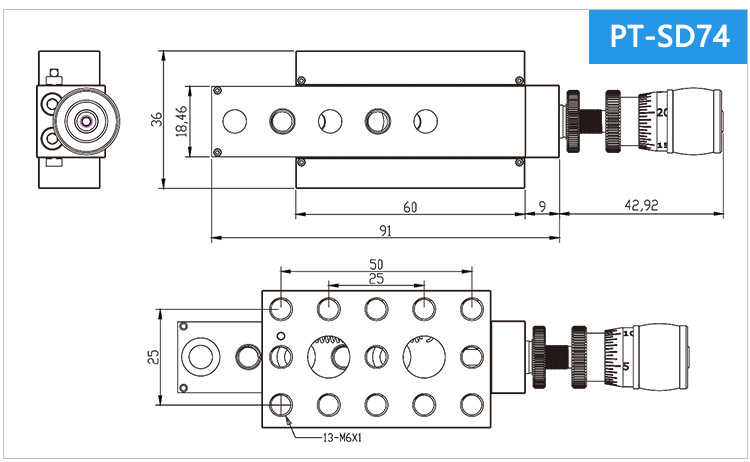

| Platform Size | 90.8*36.1*18.1mm(Excluding regulator) |
| Thread Type | 15 M6 screw holes, 2 Ø6mm countersunk head holes |
| Weight | 127.2g |
| Material | 7075 Aluminium Alloy |
In order to facilitate the construction of higher resolution applications, the PT-SD74 manual translation platform is equipped with a differential regulator drive. The coarse adjustment can be locked by manually screwing screws on the regulator, with an adjustable stroke of 8mm. The coarse adjustment moves 0.35mm per revolution, and the differential fine adjustment accuracy is 2 μm.
In addition to the use of uniaxial displacement platform, modular appearance design, convenient 2 displacement platform overlapping assembly combination into XY axis displacement platform. If you want to set up the XYZ configuration of the shift platform, you need to match the right Angle adapter.
