Product features:
Standard vacuum plating temperature range from 10-3pa to 10-4Pa room temperature

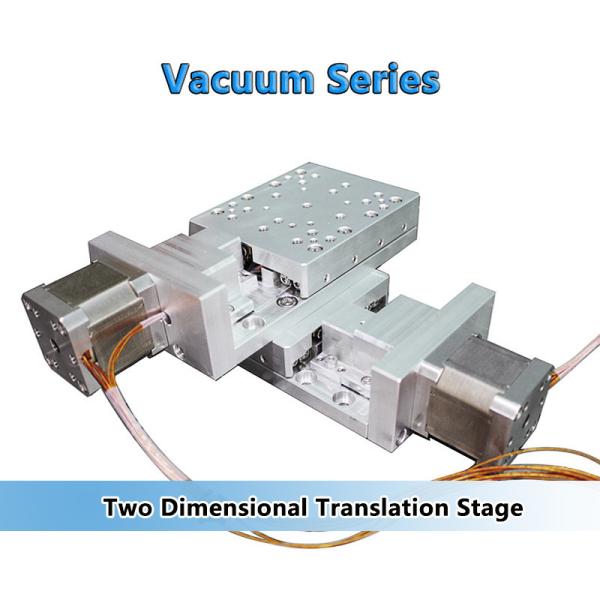

The special motor prototype developed by the vacuum series displacement table project has been used in military and civil fields, and has formed the following product advantages:
1. Vacuum, high and low temperature (LOX 10-7pa, - 196 ° C ~ 200 ° C) extreme environment.
2. The working environment temperature is - 196 ° C to + 200 ° C, the coil temperature can reach 300 ° C, the applicable vacuum degree is l.oxlota, and the radiation resistant dose is 106gy. It can provide low-voltage DC and high-voltage AC options, and can be equipped with built-in temperature sensor.
3. Standard design 28, 35, 42, 57 and 86 frame two-phase four wire hybrid vacuum stepping motor
4. Standardized design and production of 100 ~ 750W vacuum servo motor series
5. Vacuum reducer (standardized design and manufacture of 45, 65 and 85 specifications)
6. The surface materials of the motor are specially treated, and the torque characteristics of the motor are increased by 15%.
7. Based on the established parts material series system, product customization with different temperature ranges and different specifications and sizes can be realized.
8. It can expand the functions of radiation resistance, salt spray resistance, impact resistance and mold resistance, and accurately match the needs of customers.
9. Special polyether ethylamine material vacuum line in vacuum chamber
10. The use environment with high cleanliness can also be selected. Special material selection and perfect back-end treatment technology make it used in a high cleanliness environment.
Product parameters:
| Model Number | PZ110-30 | PZ110-50 | PZ110-75 |
| Structure | Ttip | 30mm | 50mm | 75mm |
| Platform Size | 90×90mm | 90×110mm | 90×110mm |
| Screw Specification | Grinding Screw Rod (Lead 1mm) |
| Guide | Precision Cross Roller Guide |
| Vacuum Motor | |
| Main Material | Aluminium Alloy |
| Surface Treatment | |
| Table Bearing | 15kg | 20 Kg |
| Weight | 1.25kg | 1.4kg | 1.7kg |
| Precision | Resolving Power | 5μ(No Subdivision)
0.25μ(20 Subdivision) |
| Maximum Speed | 10mm/Sec |
| Repeat Positioning Accuracy | 5μ |
| Absolute Positioning Accuracy | 10μ |
| Straightness | 8μ | 12μ |
| Motion Parallelism | 15μ |
| Pitch | 25″ |
| Yaw | 20″ |
| Return Clearance | 2μ |
| Lose Step | 2μ |
| | Limit Switch And Optocoupler Switch Can Be Added |
| Grating Ruler (g) Can Be Added |
| Replaceable Servo Motor (d) |
| |
